Dual-Q 5G-RGM-O for Quectel RGMII to RJ45 Outdoor unit include 4x4 directional antenna V2 For DIY

use new antenna ,do some optimization

1, Add clapboard to Improve MIMO isolation

2,Use new antenna elements and combiner

3replace old 1.13 to 1.31, less cable loss,

4,extend the reflector size

this unit design for Qualcomm RGMII to PHY , test with quectel RM500Q Rm502Q RM510Q Rm520N RM551e RM521F

I find a good outdoor enclousre (HW B222s-42a), I want to reuse it as my water proof enclosure, it will let whole system easy and cost down.

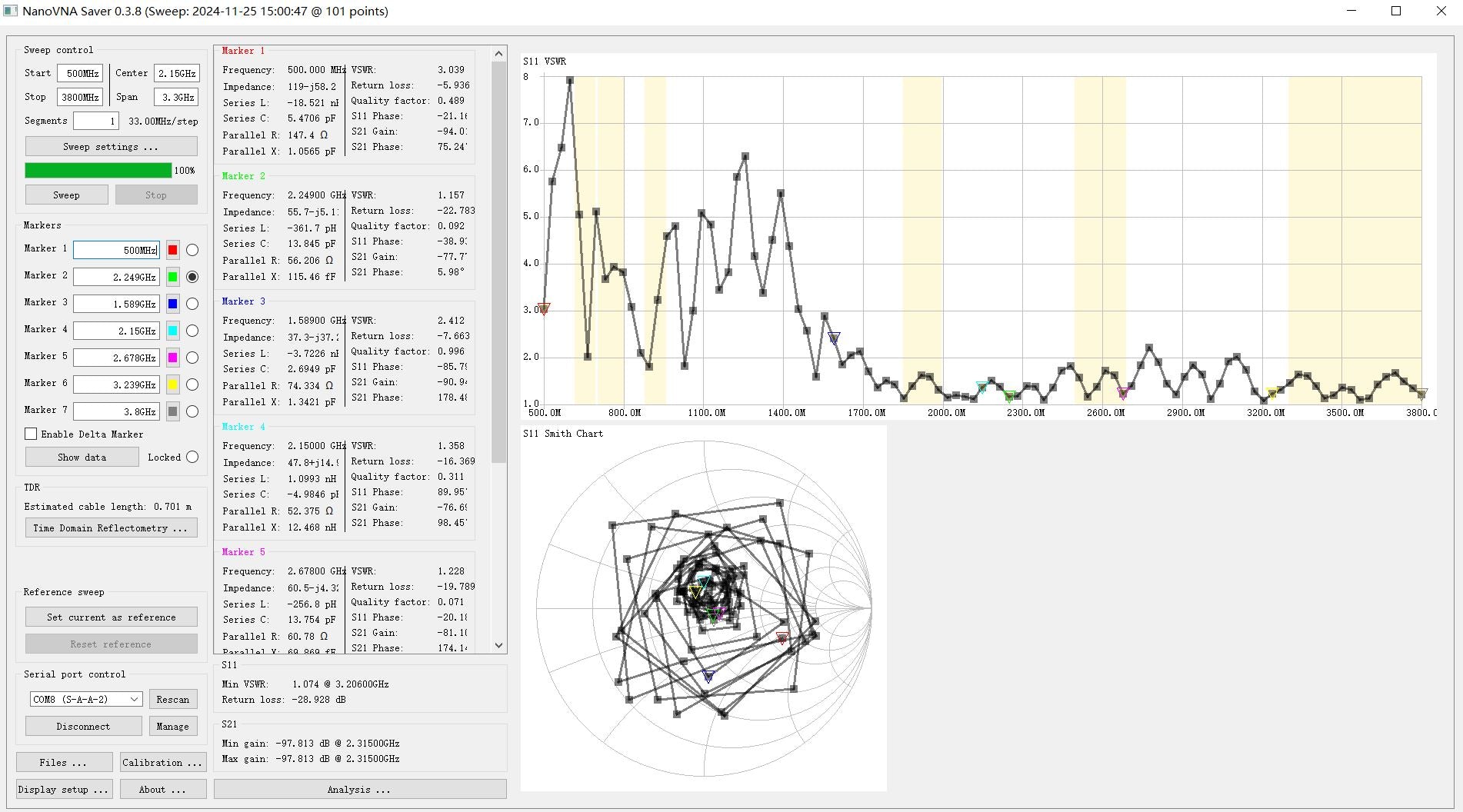

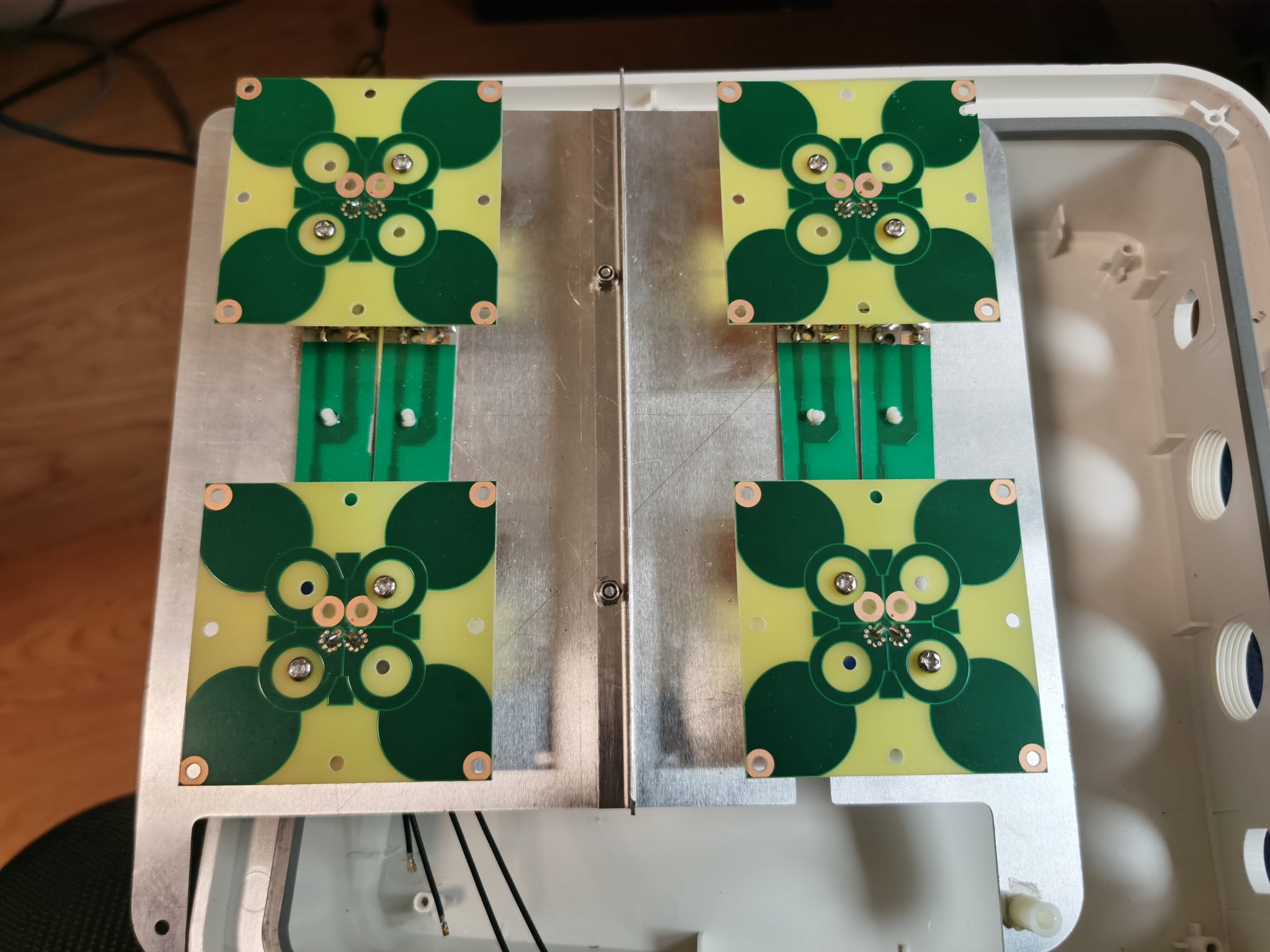

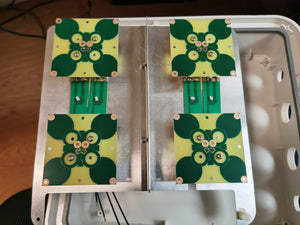

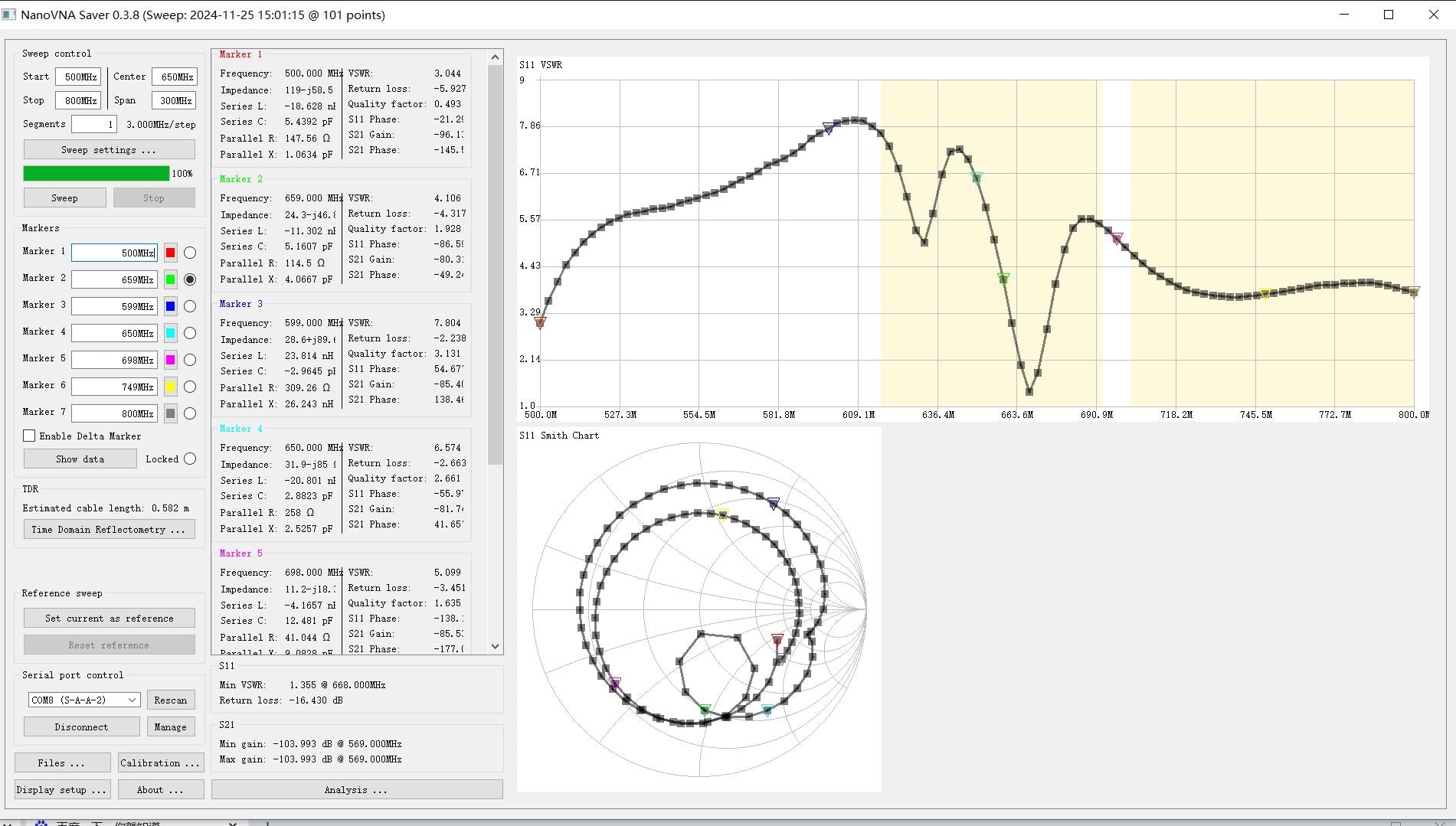

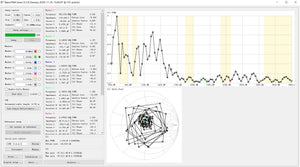

make  a new 4x4 MIMO antenna, support from 600MHz-960MH &1710MHz-3800Mhz, frequency support 5Gnr N71 N1 N25 N41 N78  and LTE band1,2,3,4,5,8,25,26,38,40,41,66,71 , antenna VSWR test in below :

recommand you use webui and RGMII to PHY project https://github.com/iamromulan/quectel-rgmii-configuration-notes

bracket and bracket install:https://youtu.be/V3oawqFvF3U

I also put all CAD file  in cloud drive https://mega.nz/folder/WfxXSAgS#vaF2PLDu_oDHvvuRi5vyVA. you can use UE or  solidwork to check

I record a video how to install 5Gnr modem and RF connector at youtube for you reference :

https://youtu.be/d5wrexRW6w8

packing list:

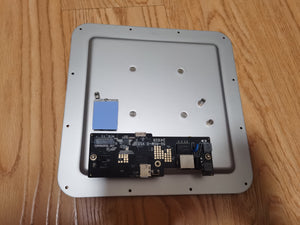

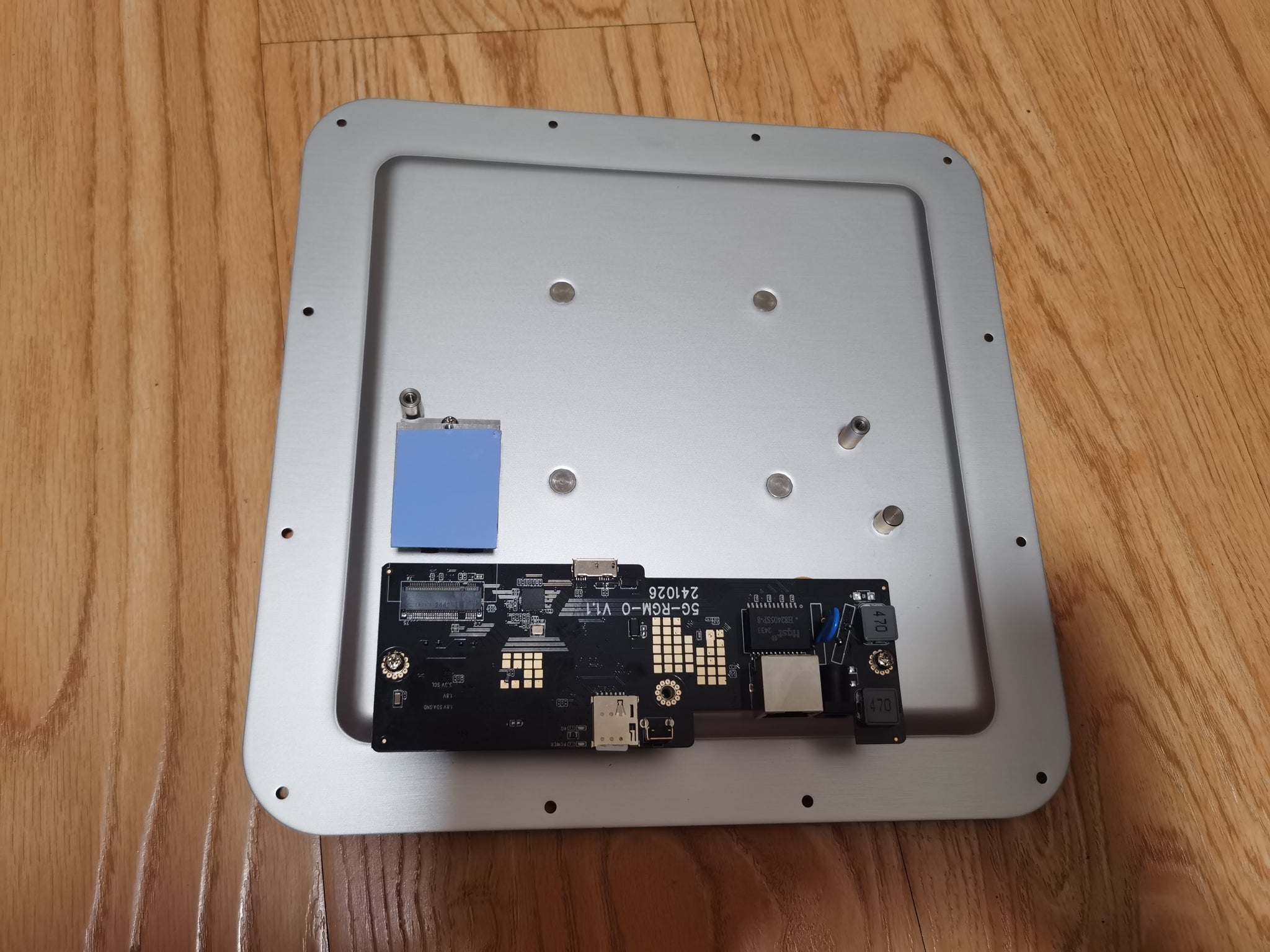

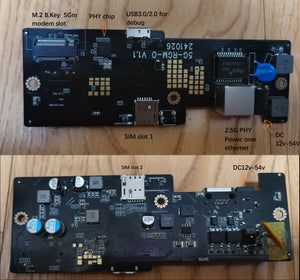

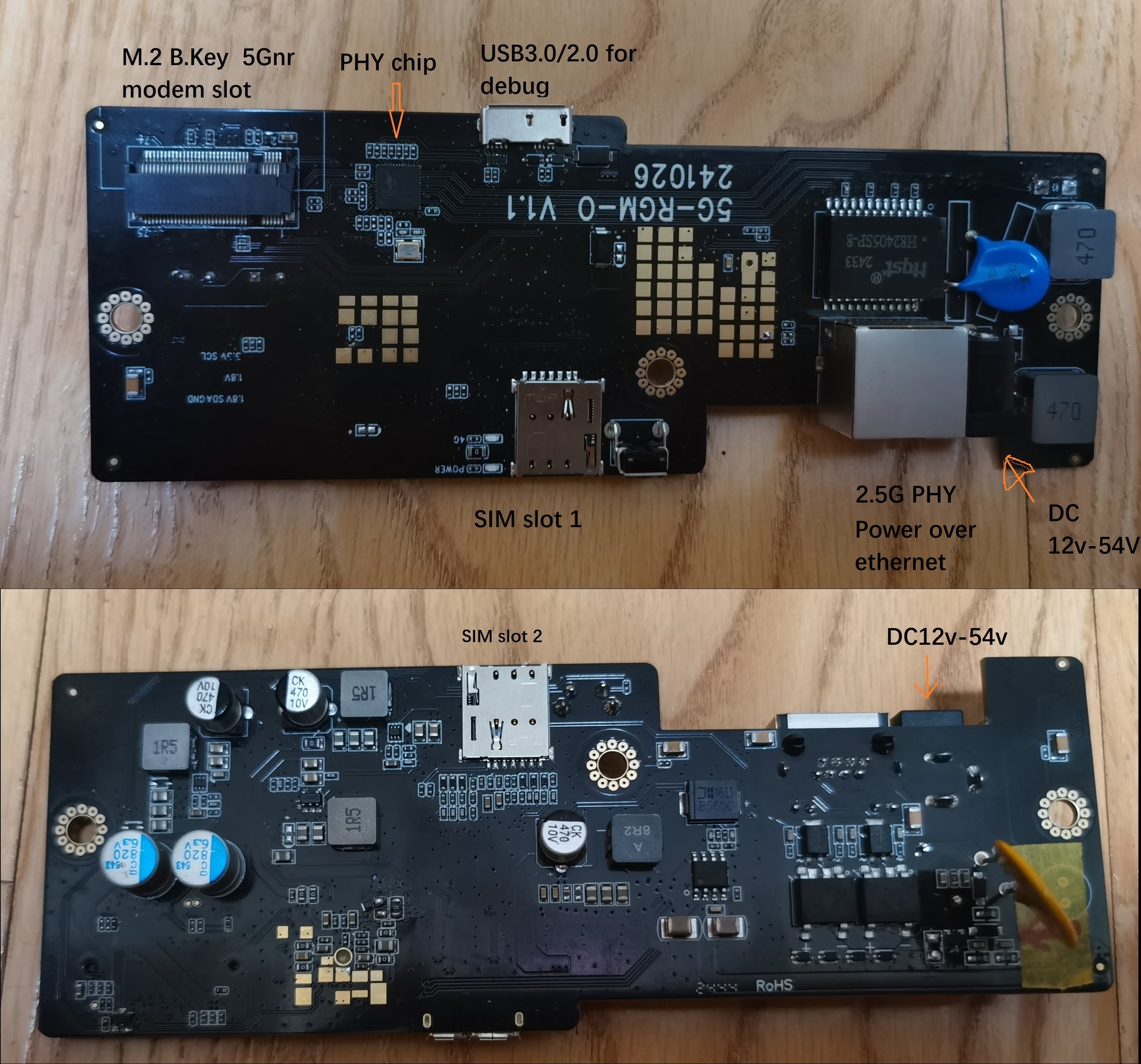

router board*1;

water proof body case*1  (used have some scrtaches on the surface)

4x4 internal MIMO antenna

L bracket & accessories

2.5G 54V Power Over Ethernet adapter

ship with UPS to US CA AU , for EU I will ship with tracked parcel
