New design for 5Gnr M.2 product , we have use new power IC (Texas Instruments）to provider high power for 5G Modem (Max 10W)，add new protection for power output ,sim esd,
1x M.2 (NGFF) 3.7V 3A max for 5G M.2 Modem work at USB3.0 mode
1x Minipcie 3.7V 3A max for LTE Modem work at USB2.0 Mode
2x Minipcie for WIFI

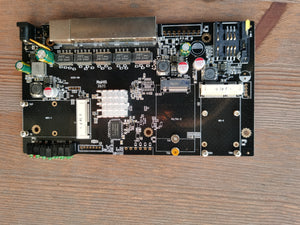

Hardware: MTK7621A Flash16M / RAM256M(CPU Cores:2 ;CPU MHz:880)

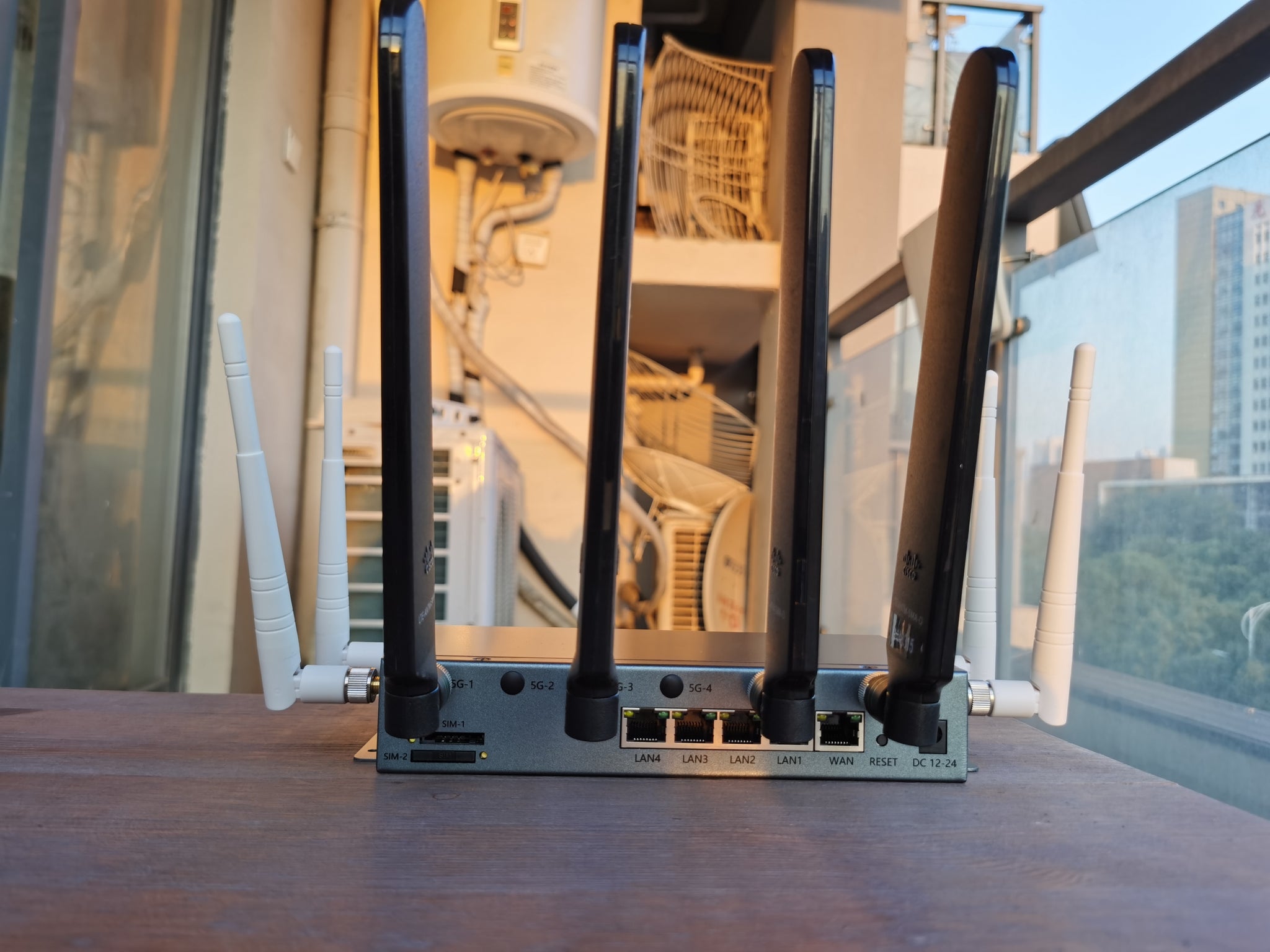

4 *lan+1 * wan 10/100M/1000M RJ45 port

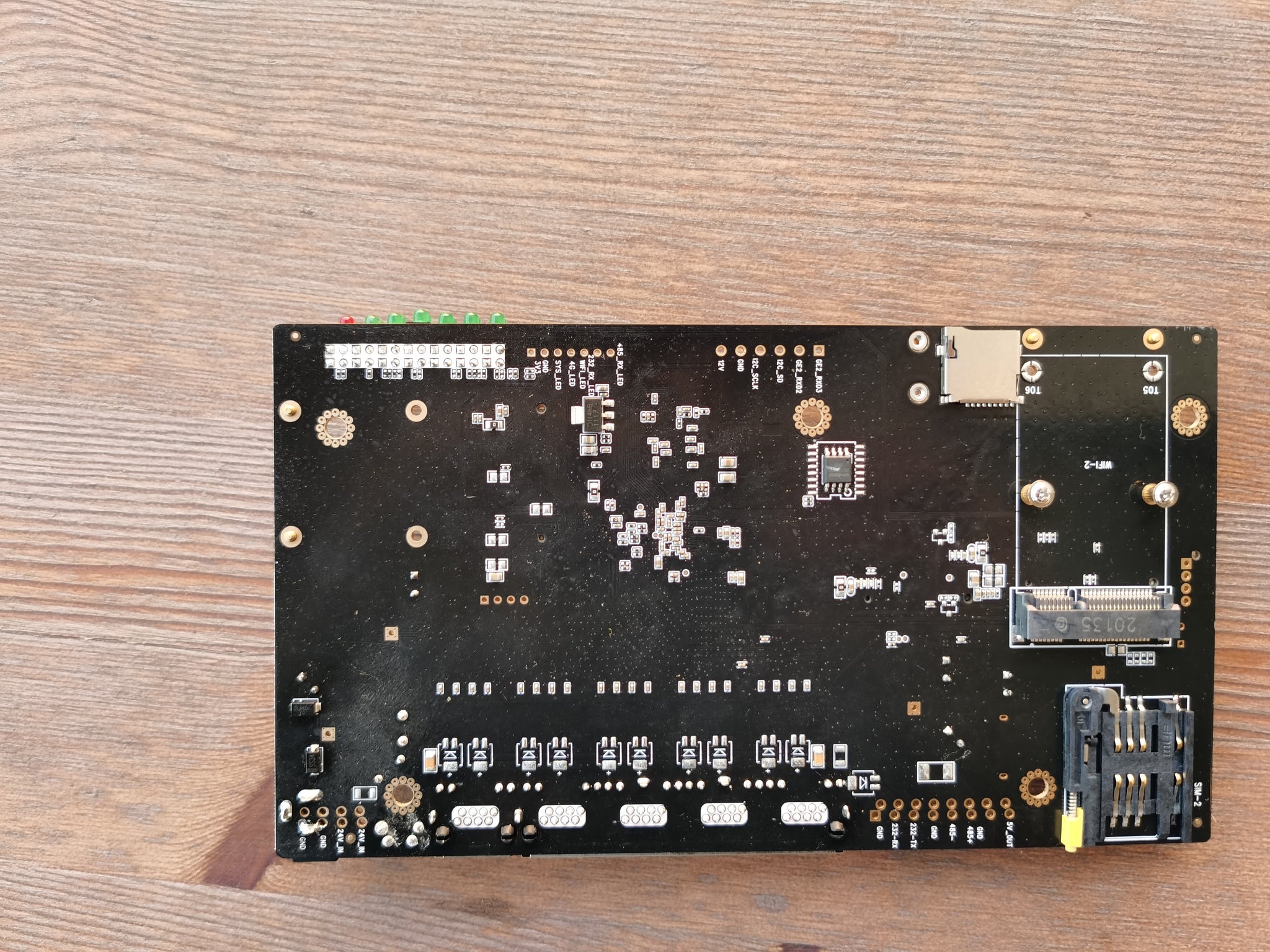

1* M.2 (NGFF) key B for 5Gnr & LTE modem
1*Minipcei for LTE minipcie modem
2 * Minpcie for wifi card 3.3V and 5V output
14 * led for display more information.
1*TF card slot
12 * antenna hole for future use
Self-recovery fuse (60v/2A)
Industrial voltage regulator wide range input 5V ~ 27V, Solid capacitor be adopted

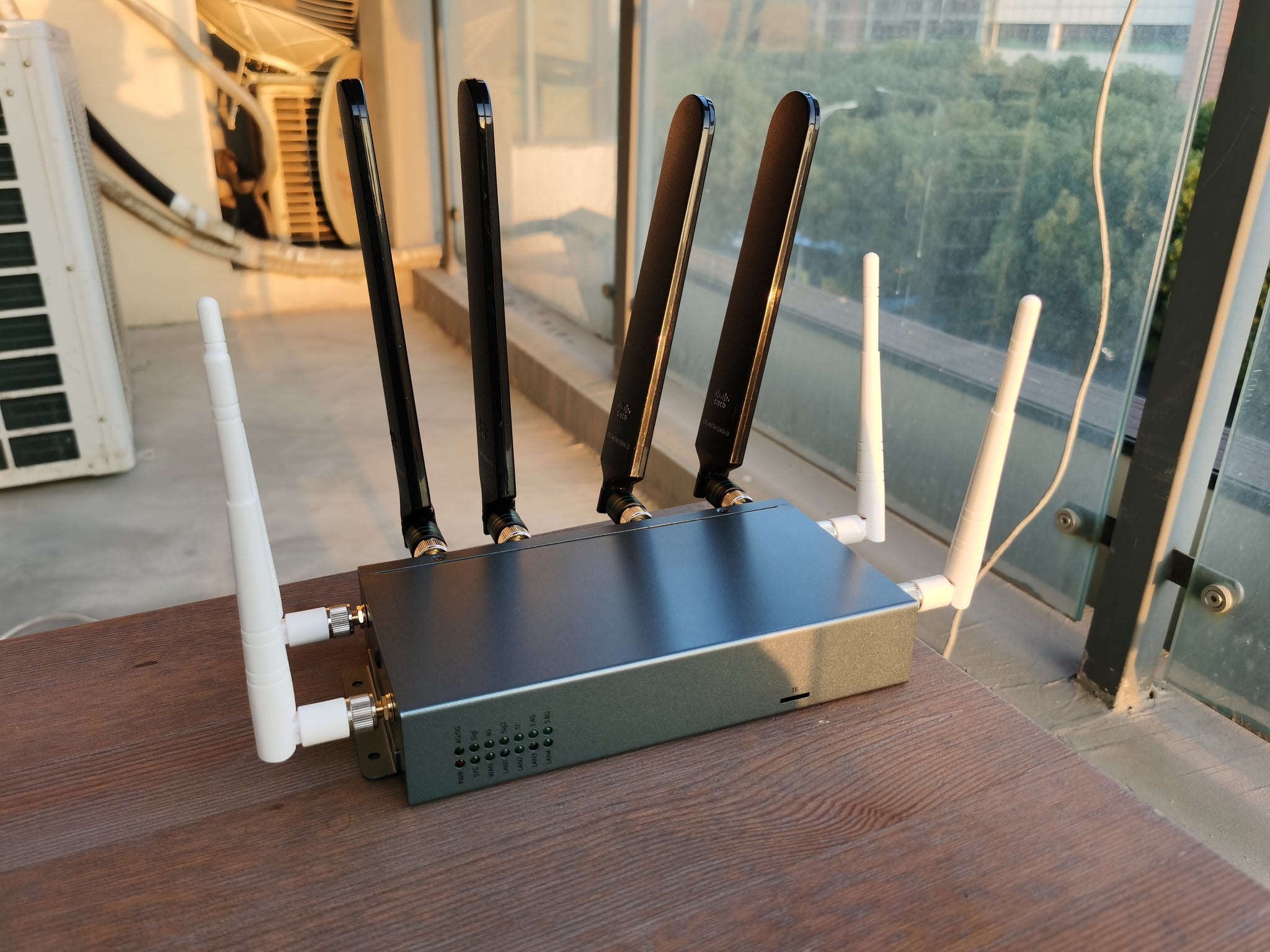

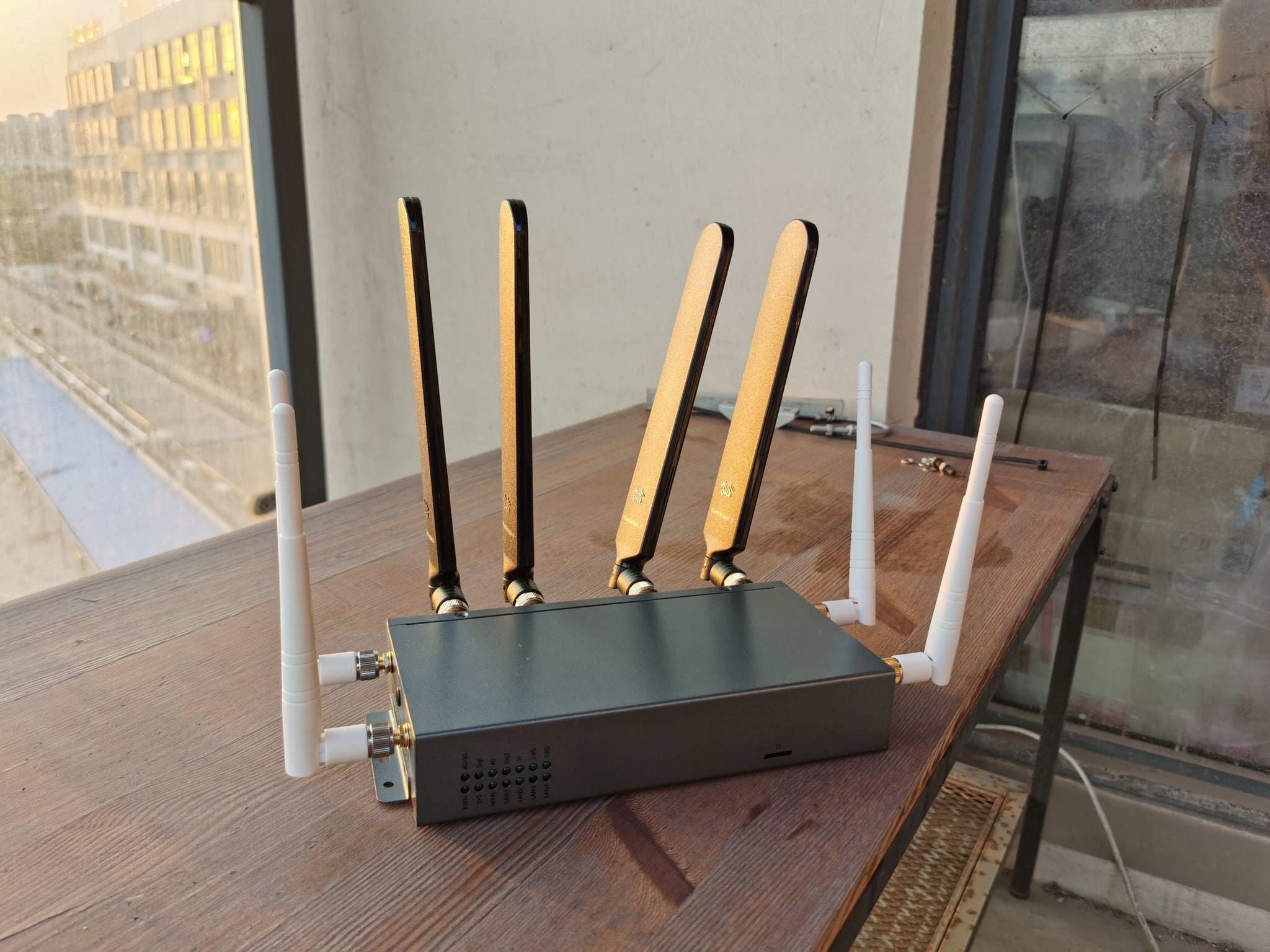

Metal case for heat conduction
Software:
we use ROOTer (https://www.ofmodemsandmen.com/) firmware. Daiyman Has made firmware for this board.
support most ROOTer function, support most LTE modem drivers(sierra wireless,Quectel,Huawei,ZTE,Meig)
has tested:
Quectel RM500Q RM510Q EC25E EC25A EC20 EM06 EM12
sierra wireless EM(MC)7355 EM(MC)7455 EM7430 EM7565 EM7511
MeiG SLM750 (TA)
ZTE ME3760 ME3860
Add 9K and 10K drivers for all QCA(QCA988x,998x) and AR(AR92xx,AR93xx,AR94xx,AR95xx) wifi card router has pre-flashed BREED (https://www.breed.hackpascal.net) and latest ROOTer firmware
I have add H721 to openwrt master https://github.com/openwrt/openwrt/pull/5076/files
firmware download address
rooter firmware https://drive.google.com/file/d/1c-5sC4A2iE1KfJ_9lw1vO2Uw3mWsbBW6/view?usp=sharing
test immortalwrt firmware https://github.com/openwrt/openwrt/pull/5076/files
some video on youtube:
https://youtu.be/NB7EFggt9RA
https://youtu.be/TJi2MwIaLH8
packing list:
router board*1;
router body case*1
MHF4 to sma cable (15cm) *4
U.FL to sma-RP cable *4
Cisco LTE-ANTM-SMA *4
wifi antenna(white)*4
12V 2A power adapter*1
not include 5Gnr /LTE modem or wifi card
we ship with UPS saver normally 3~5 working days worldwide, declare as the sample.
