Description

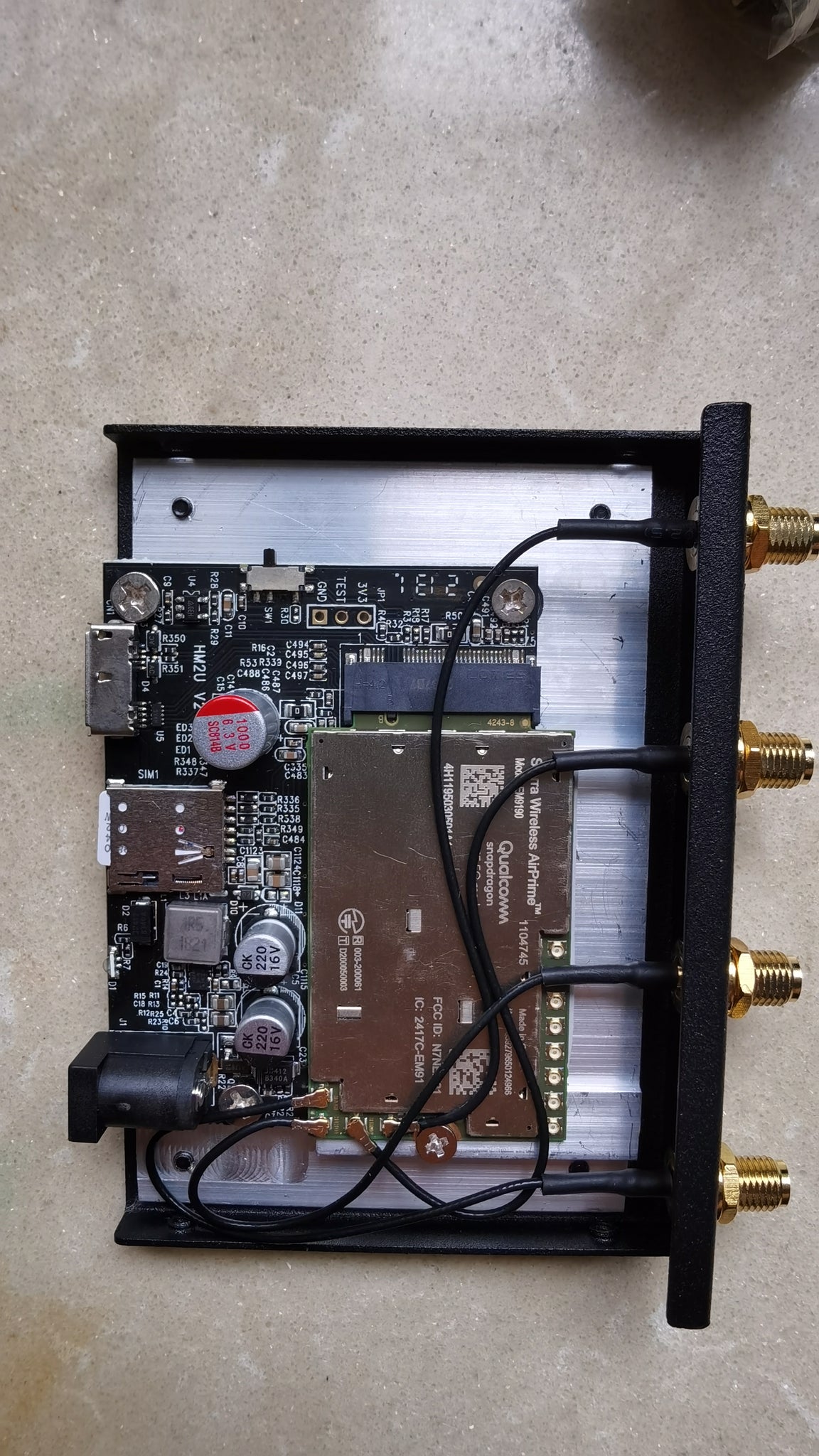

Total New design for latest 5Gnr M.2 Modem Sierra wireless EM9190 EM9191 EM7690; Telit FN980 ; Thales MV31-W,Quectel & Simcom Modem.

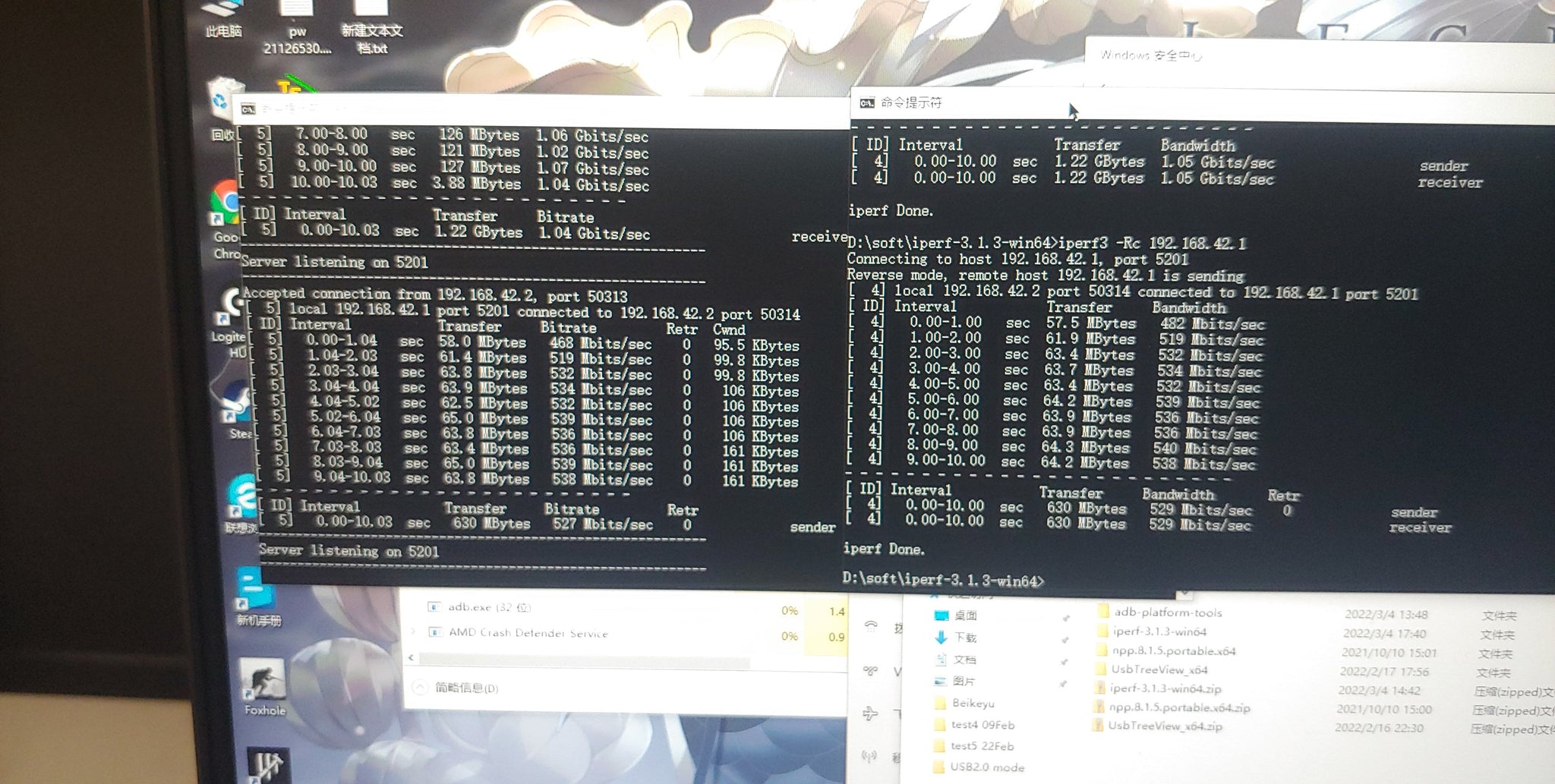

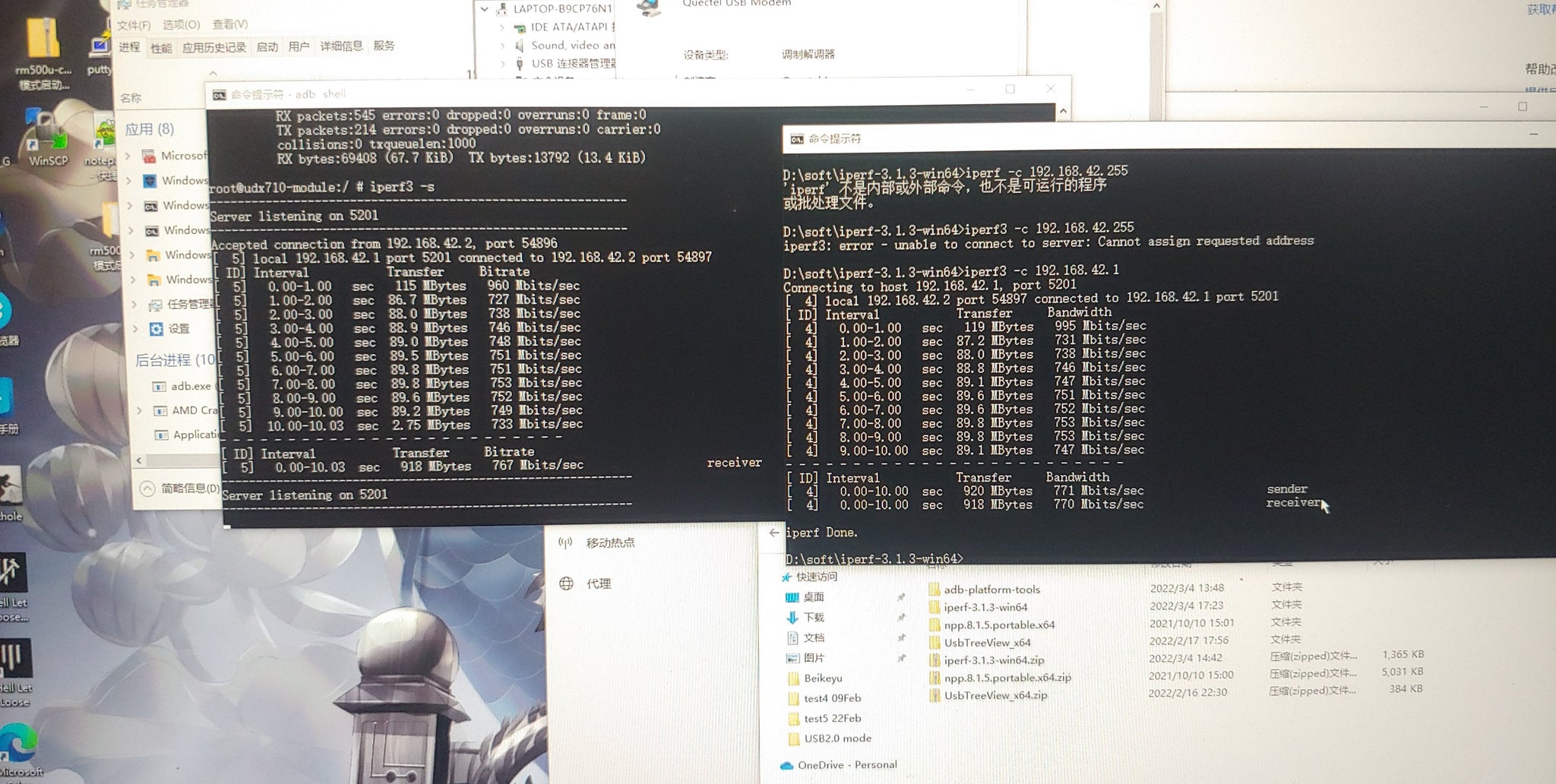

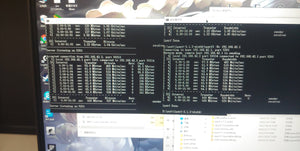

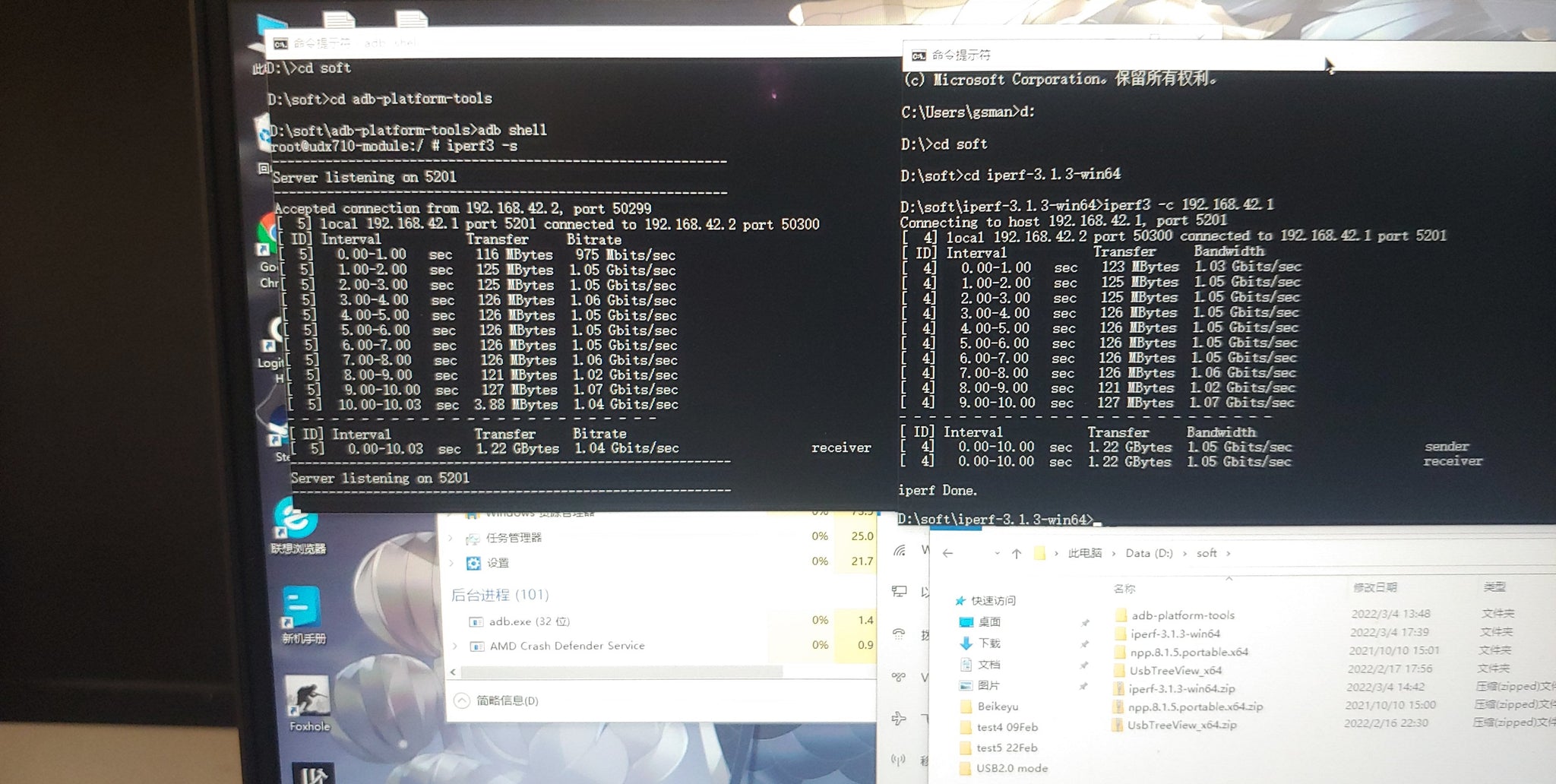

I use Quectel RM500U-CN internal iperf3 test Throughput can get over 1Gbits/s
New feature:
A, Support 52mm,50mm,42mm length three size of 5G M.2 Modem.

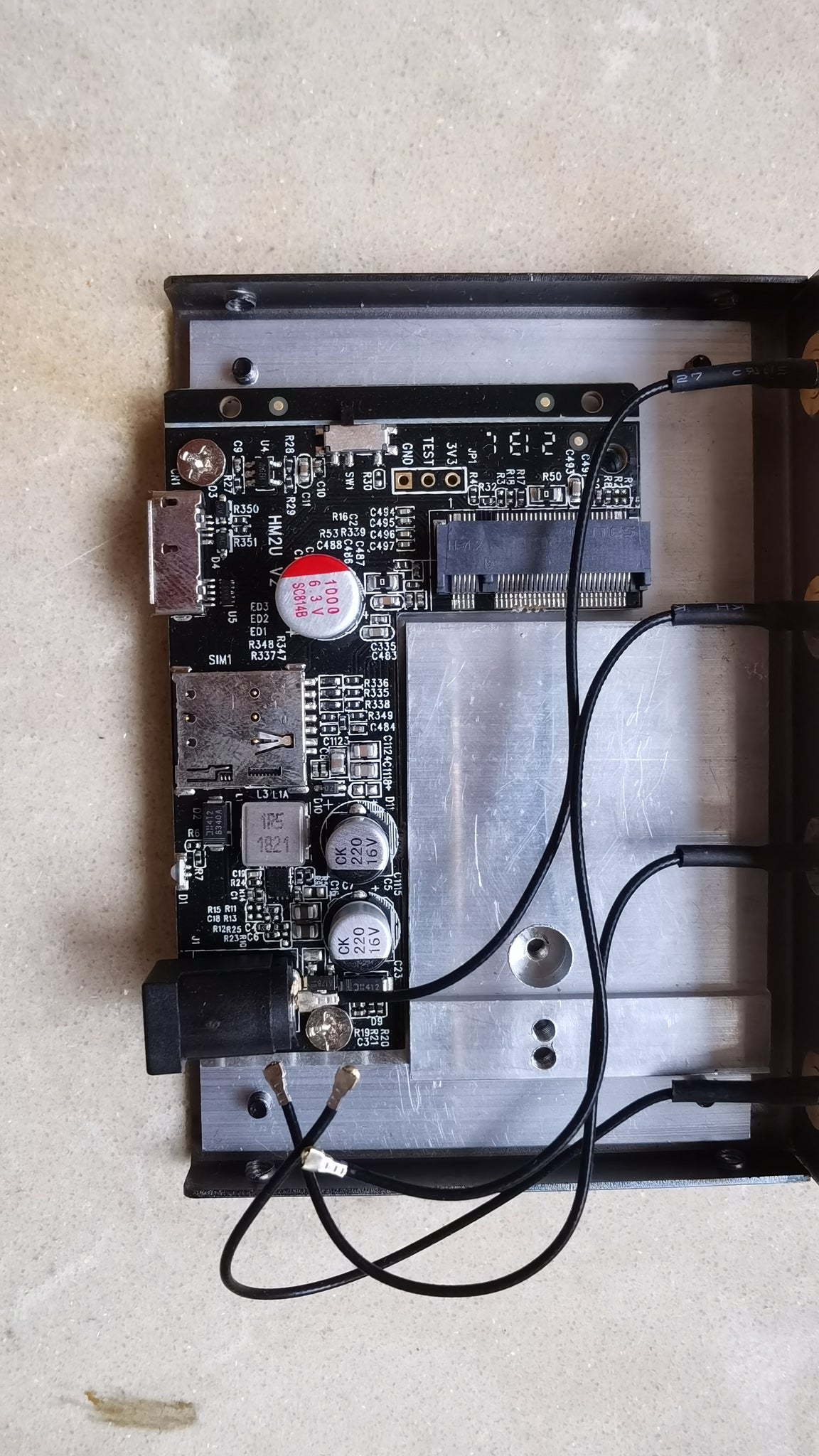

B, Introduce integrated aluminum heat sink，make your 5G modem always cool.
C,Add New switch for Sierra Wireless EM9190 EM9191 EM7690, switch will let modem work at USB mode.
D, 2 Step electric capacity at Output side,(input 16V 220μF,output 16V 220μF+6.3V 820μF)
E, Adjust output to 3.7V. Prevent voltage drop when high data transfer .

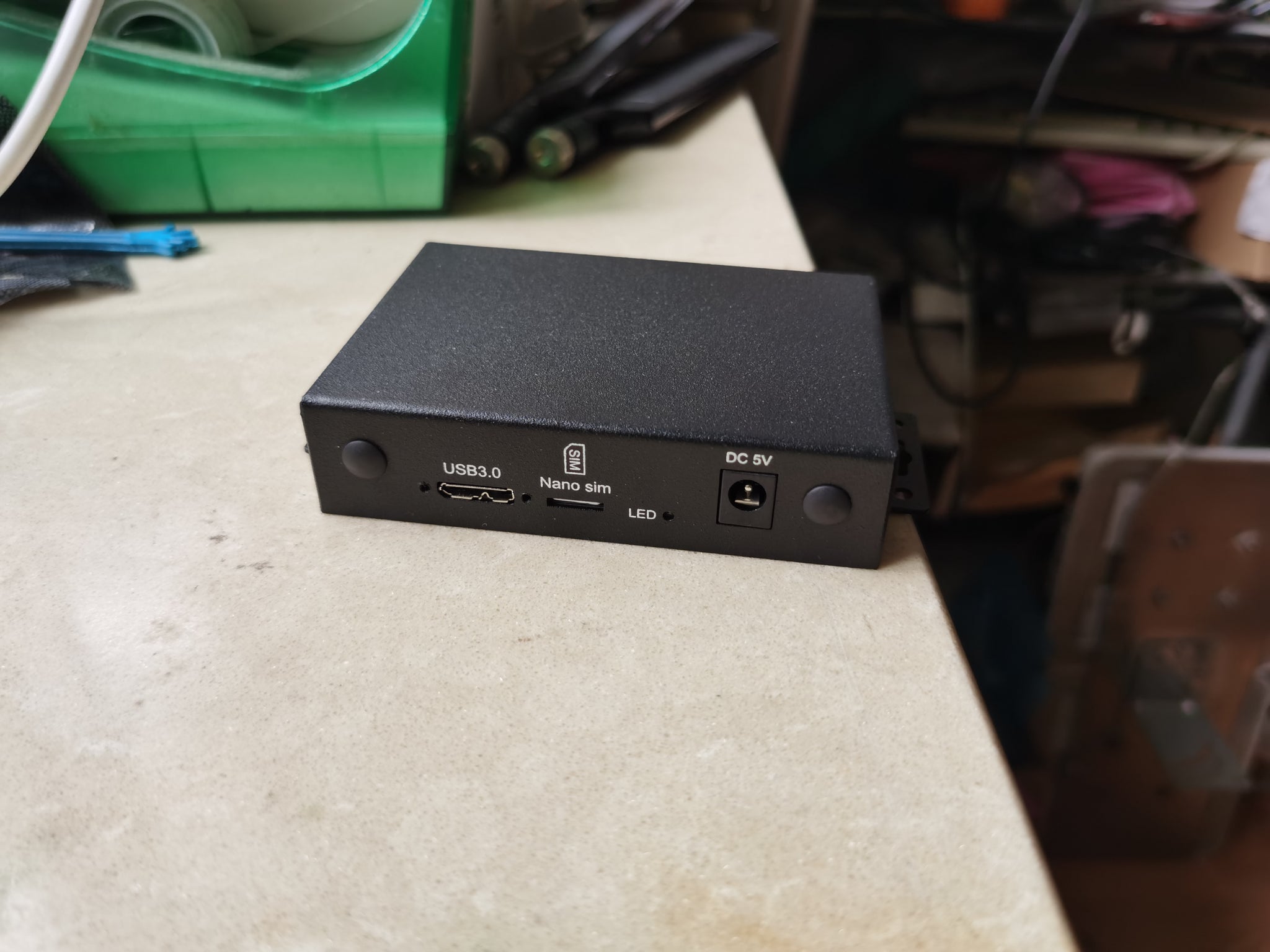

F, Add 5V DC AUX port, Max support 5V 4A power adapter, provider 20W power for 5G modem.
G,Use Nano sim card slot , support hot swap simcard.
H,ESD prtection at USB and SIM slot.
No include internal Modem
adapter + EM9190(52mm length) speedtest:https://youtu.be/lwUBTPN3hZg

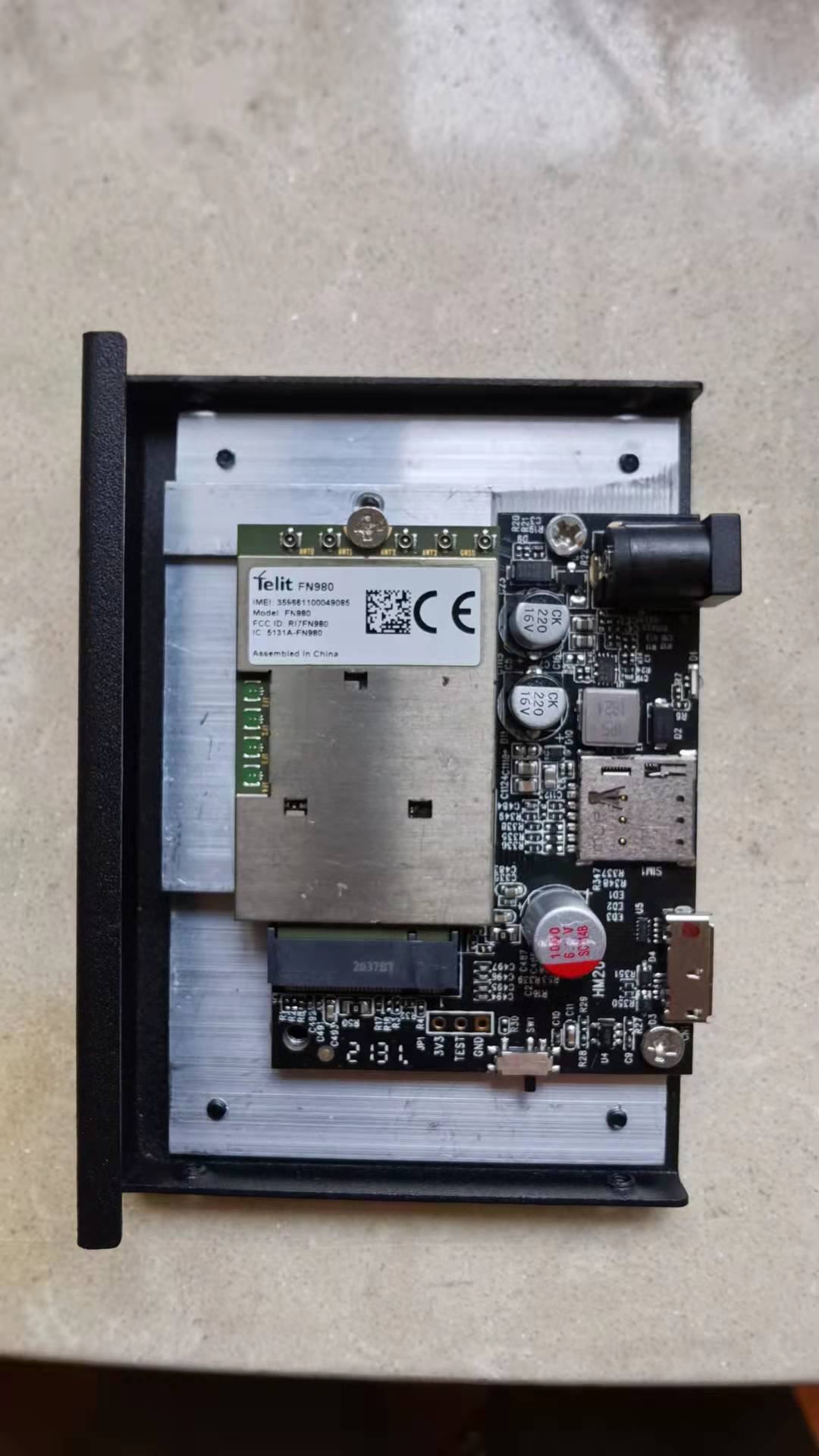

install telit FN980 (50mm legth modem) https://youtu.be/9dyhbFG3cpg

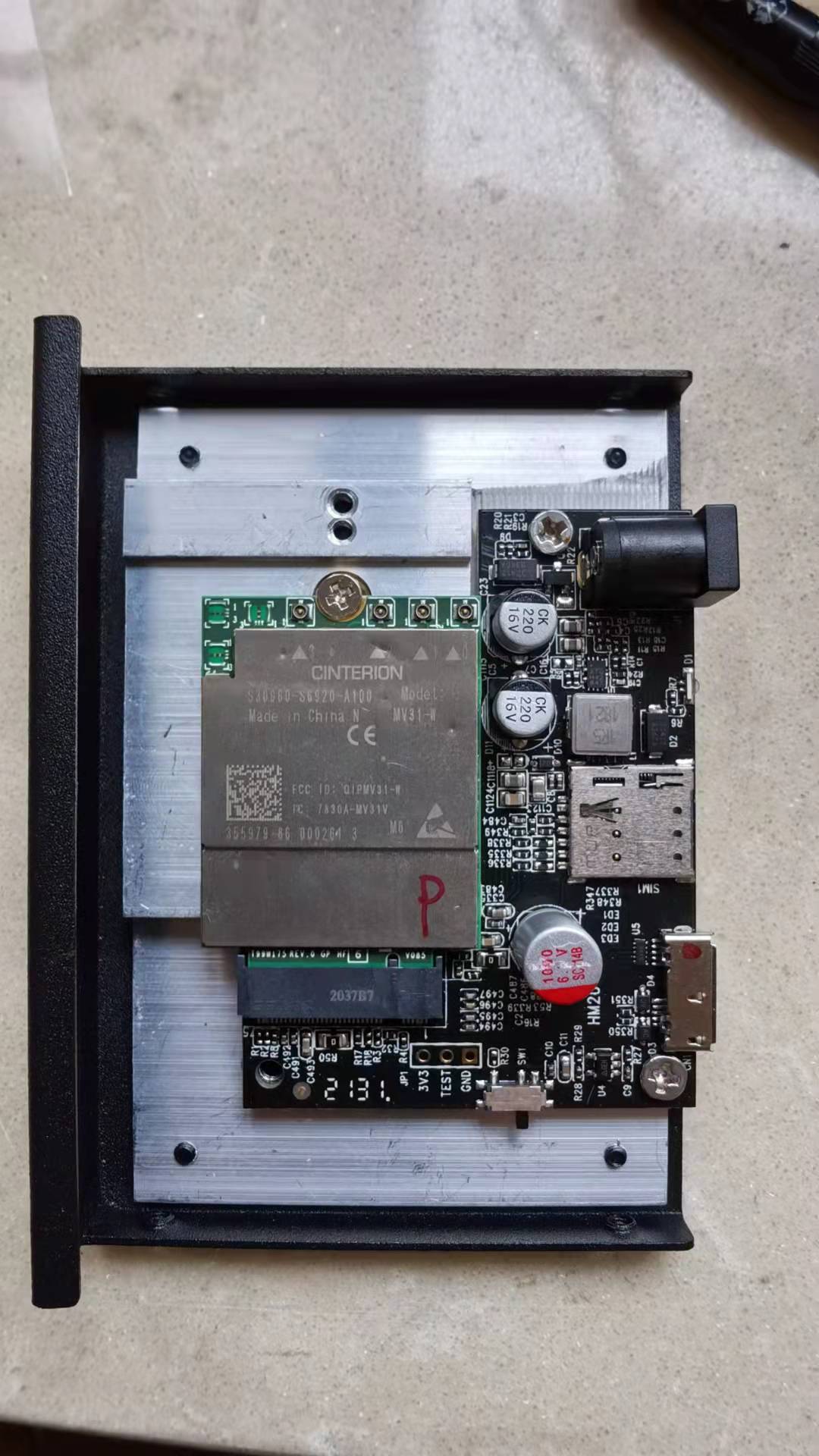

install Thales MV31-W (42mm length modem) https://youtu.be/nvbKd06rTJY
inlcude:
MH2U adapter,
1x 45cm length USB3.0 A Micro B Cable

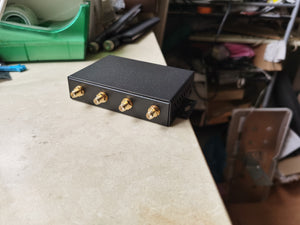

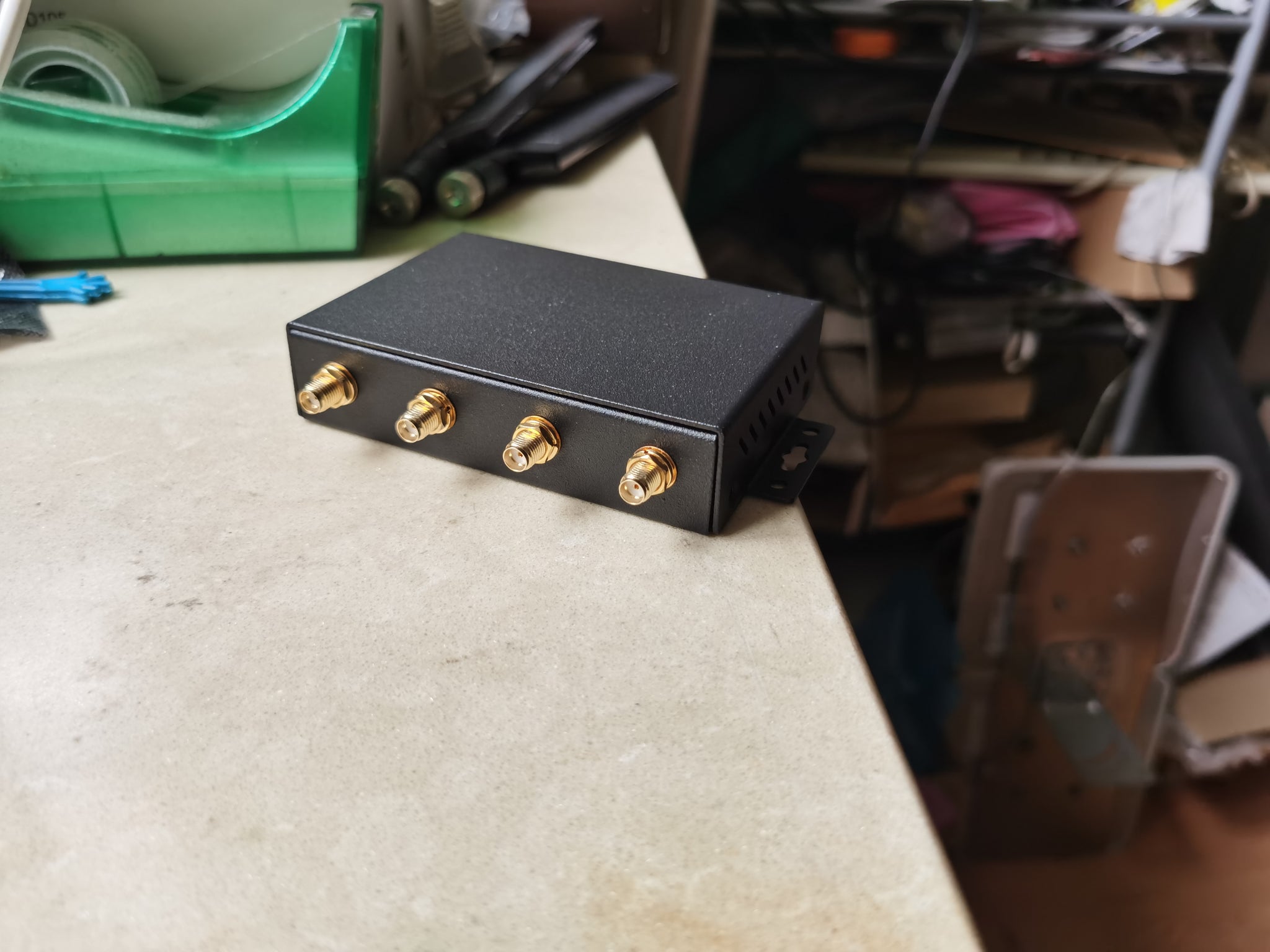

4x 10cm MHF4 to SMA cable.
1x 3x3.5x0.15 Silicone pad
1x 3x3x0.02 Silicone pad
1x support column
ship from China with China post tracked parcel
