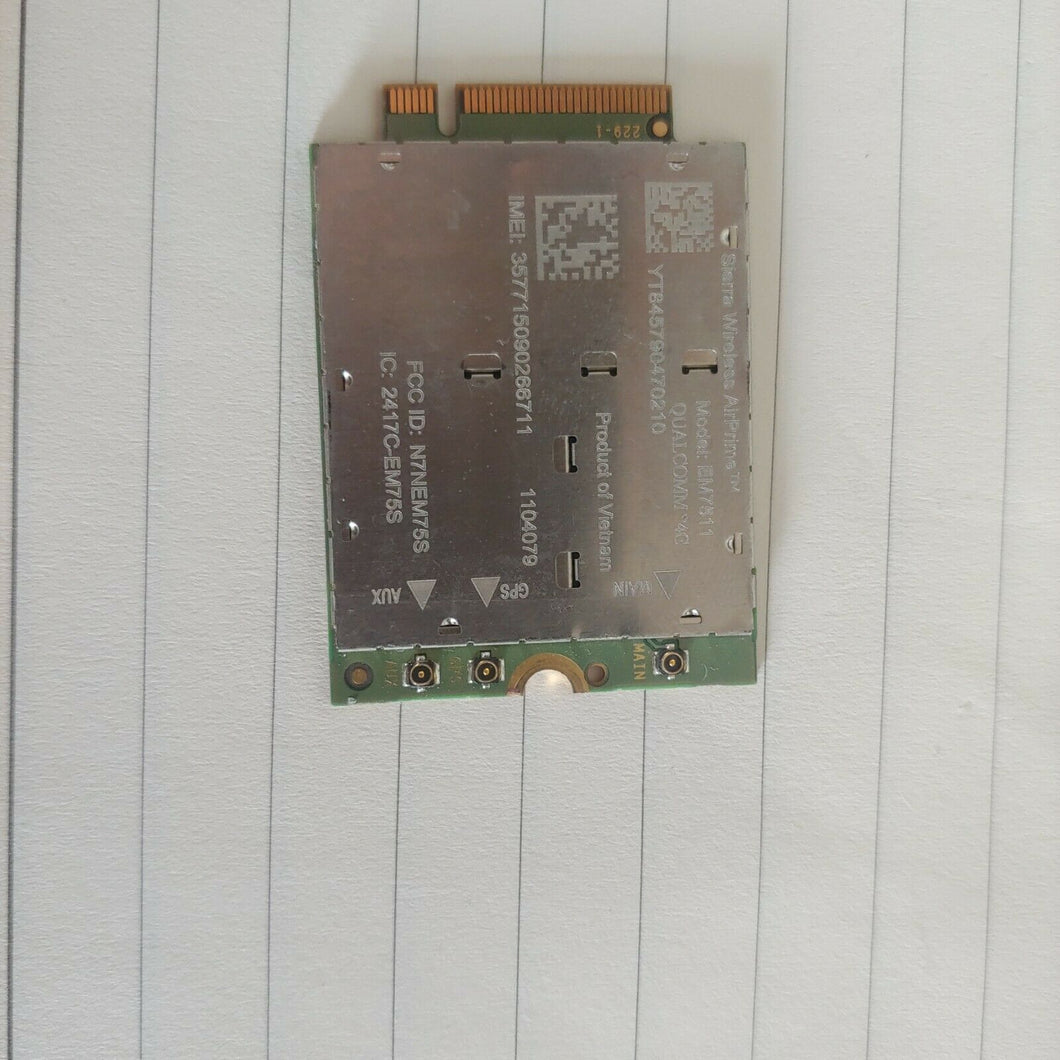

Sierra Wireless EM7511 M.2 LTE Cat 12 Modem
plug from working enviroment
- Tested working
- No carrier lock
- Flashed with latest generic firmware: SWI9X50C_01.09.04.00
* Form factore: PCI Express M.2
* Category: LTE Cat.12
* Supported LTE Frequency bands:
B1 (2100)
B2 (1900)
B3 (1800)
B4 (AWS)
B7 (2600)
B8 (900)
B9 (1800)
B12 (700ac)
B13 (700c)
B14 (700PS)
B18 (800lower)
B19 (800 upper)
B20 (800DD)
B5 (850)
B42 (TDD 3500)
B43 (TDD 3600)
B26 (US 850 Ext)
B29 (US 700de Lower)
B41 (TDD 2500)
B30 (2300 WCS)
B66 (AWS-3)
B32 (1500)
B46 (TDD 5200)
B48 (3600)
* Supported 3G Frequency bands: B1, B2, B3, B4, B5, B6, B8, B9
* Date Rates: peak download rate up to 600Mbps/ peak upload rate up to 150Mbps
* Satellite Systems: Galileo, Glonass, GPS, Beidou
* Interfaces: USB 3.0, USB 2.0 High Speed, SIM interface x 1 (1.8V/3V)
* Control Options: APIs, AT Commands
* Dimensions: 42x30x2.3mm
* Antenna: Diversity, MIMO, GNSS Bias
* Antenna Connectors: Main, Aux/GNSS, GNSS
* Temperature Range: -30°C / +70°C '-40°C / +85°C (TBC)
* Firmware: Pre-certified firmware, Secure boot
* System Drivers: Windows® 8, Windows® 8.1, Windows® 10, Linux Driver: Standard ECM, Android RIL
* Planned Carrier AT&T, docomo, Telstra, Verizon, Vodafone
* Regulatory: CE, FCC, GCF, IC, NCC, PTCRB
* Cloud services: Free Unlimited FOTA upgrades, Connectivity Management option, Device Management option, Application Enablement option
* Connectivity: Optional Ready-to-Connect Sierra Wireless embedded SIM
Please check this device is suitable for use on intended mobile network before bidding as I can only accept returns for faulty goods.
